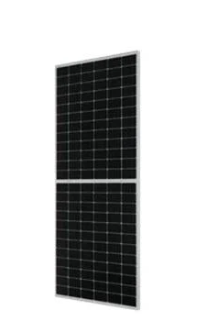

Canadian 545W Monocrystaline Solar panel

Power up your solar system with the Canadian Solar Panel 545W CS3W-545MS, engineered for high-efficiency performance and durability. This 545W solar panel delivers industry-leading energy yields, backed by innovative HiKu6 mono PERC cell technology. Ideal for residential, commercial, and utility-scale applications, it combines cutting-edge reliability with cost-saving design, making it one of the most efficient modules in its class.

Key Features & Benefits

• Delivers up to 545W of power output with module efficiency up to 21.3%
• Advanced LID / LeTID mitigation technology reduces degradation by up to 50%
• Superior shade tolerance and minimized micro-crack impacts for consistent performance
• Designed to withstand heavy snow (5400 Pa) and wind loads (2400 Pa)
• Up to 4.5% lower Levelized Cost of Energy (LCOE) and 5.6% lower system cost
• Compatible with mainstream tracking systems, perfect for large-scale deployments

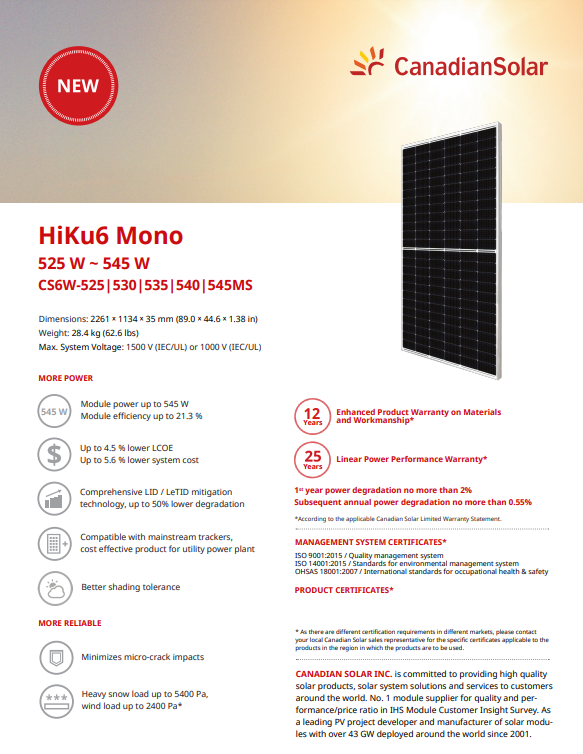

Technical Specifications

This model features a module size of 2261 x 1134 x 35 mm, weighing 28.4 kg. It supports a maximum system voltage of 1500 V (IEC/UL) and offers excellent thermal and mechanical resistance.

• Maximum Power (Pmax) - 545W

• Maximum Power Voltage (VMP) - 41.5V

• Maximum power Current (Imp) - 13.14A

• Open Circuit Voltage (Voc) - 49.4VShort Circuit Current (Isc) - 13.95A

• Maximum system Voltage -1500V

• Maximum Series Fuse - 25A

• Operating Temperature - ~20*C-90*C

• Application Class - Class II
