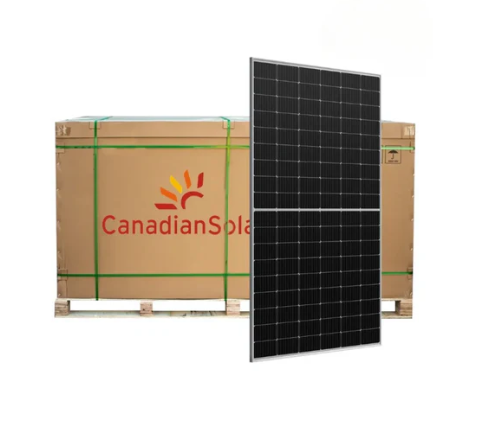

Pallet of 36 x Canadian 545W Monocrystaline Solar panel

Canadian 545W Monocrystaline Solar panel pallet

This Package Only Includes 36 Solar Panels

The Courier Of Solar Panels Is at your Own Risk!

Power up your solar system with the Canadian Solar Panel 545W CS3W-545MS, engineered for high-efficiency performance and durability. This 545W solar panel delivers industry-leading energy yields, backed by innovative HiKu6 mono PERC cell technology. Ideal for residential, commercial, and utility-scale applications, it combines cutting-edge reliability with cost-saving design, making it one of the most efficient modules in its class.

Key Features & Benefits

• Delivers up to 545W of power output with module efficiency up to 21.3%
• Advanced LID / LeTID mitigation technology reduces degradation by up to 50%
• Superior shade tolerance and minimized micro-crack impacts for consistent performance
• Designed to withstand heavy snow (5400 Pa) and wind loads (2400 Pa)
• Up to 4.5% lower Levelized Cost of Energy (LCOE) and 5.6% lower system cost
• Compatible with mainstream tracking systems, perfect for large-scale deployments

Technical Specifications

This model features a module size of 2261 x 1134 x 35 mm, weighing 28.4 kg. It supports a maximum system voltage of 1500 V (IEC/UL) and offers excellent thermal and mechanical resistance.

• Maximum Power (Pmax) - 545W

• Maximum Power Voltage (VMP) - 41.5V

• Maximum power Current (Imp) - 13.14A

• Open Circuit Voltage (Voc) - 49.4VShort Circuit Current (Isc) - 13.95A

• Maximum system Voltage -1500V

• Maximum Series Fuse - 25A

• Operating Temperature - ~20*C-90*C

• Application Class - Class II
