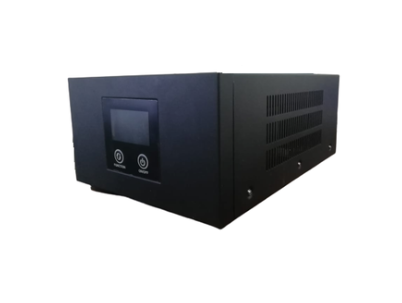

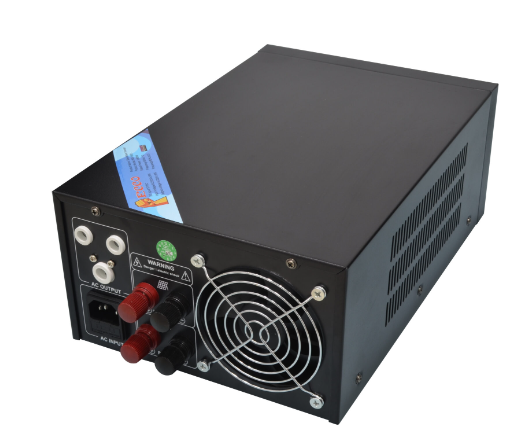

Ecco 1000W 12/30A Inverter

Ecco 1000W Pure Sine Wave Solar Inverter – 12V DC, 30A Charging

Description:

Reliable Power Conversion for Solar Applications

The Ecco 1000W Pure Sine Wave Inverter delivers stable and efficient power for various small backup energy needs. Engineered for home, and mobile solar installations, this inverter provides 1000W of continuous power with a pure sine wave output, ensuring compatibility with sensitive electronics. Continuous output power will determine how long the battery back up will last during power cuts.

Key Features:

• Pure Sine Wave Output – Ensures clean and stable power for appliances and sensitive electronics.
• 1000W Continuous Power – Ideal for small to medium-sized solar power setups.
• 12V DC Input & 30A Charging Current – Efficient battery charging and performance.
• Wide PV Input Voltage Range (15V–44V) – Adapts to different solar panel configurations.
• Maximum PV Input Voltage: 50V – Handles diverse solar input conditions.
• Auto Voltage Regulation (AVR) – Automatically adjusts load capacity for optimal operation.
• Advanced Protection Features:
  • Overload protection (100-120% for 30 sec, >120% for 100ms, >150% for 50ms).
  • Short-circuit protection (<150 microseconds response time).
  • Over/under voltage protection for both input and output.
  • Battery low-voltage and surge protection.

Technical Specifications:

• Input Voltage: 220/230V AC (+25%, –35%)
• Output Voltage Regulation: 220/230V ± 10% (Automatic Adjustment)
• Frequency: 50/60Hz ± 0.5
• Transfer Time: <9ms
• Battery Type: Sealed, maintenance-free lead-acid battery
• Recharge Current: 8–13A
• Dimensions: 370mm (D) × 240mm (W) × 140mm (H)

Battery Performance Note:

The inverter’s display battery bars drop incrementally, even with a 1% decrease in battery level. For precise voltage readings, use a multimeter.

What's Included:

• 1 × Ecco 1000W 12V/30A Pure Sine Wave Solar Inverter
• 1 × User Manual
• 2 × Battery Cables

Warranty & Installation Requirements:

• 1-Year Warranty covers manufacturing defects.
