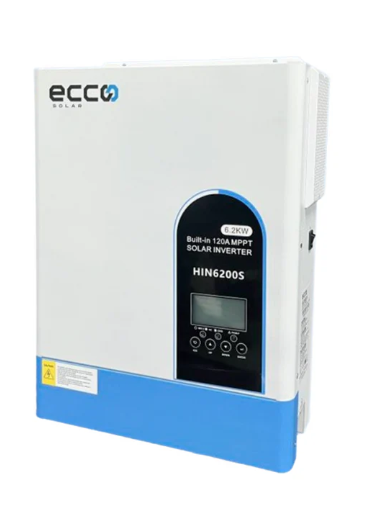

Ecco Solar 48V 6.2kw MPPT Hybrid Inverter

Ecco 6.2 Kva 6200w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Product Features

• Dual output for smart load management
• Lithium battery activation function by PV or Utility – Compatible work with LiFePO4 battery via RS485 –
• PV Input 500 Vdc Max
• Built-in MPPT 120A
• Capable to work without battery
• Detachable dust cover for harsh environment
• Wi-Fi remote monitoring optional
• Support multiple output priority: UTL, SOL, SBU, SUB – EQ function to optimize battery performance and extend lifecycle

Specifications:

• Rated Power: 6200VA/6200W
• DC Input: 48VDC, 135A
• AC Output: 230VAC, 50/50H2, 27A, 10
• AC Charger Mode:
• AC input: 230VAC, 50/60₽z. 40A, 1Ф DC Output: 54VDC
• Max Charge Curtent(AC): 80A, Default 304
• Max. Charge Current(PV+AC): 120A
• AC Output: 230VAC, 50/80Hz, 27A, 1Ф
• Solar Charger Mode:
• Max. PV Array Power: 6500W
• Min. Solar Voltage: 60VDC
• Max. Solar Voltage(VOC): 500VDC
• Max Solar Current: 27A
• Max. MPPT Charge Current: 1204

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
