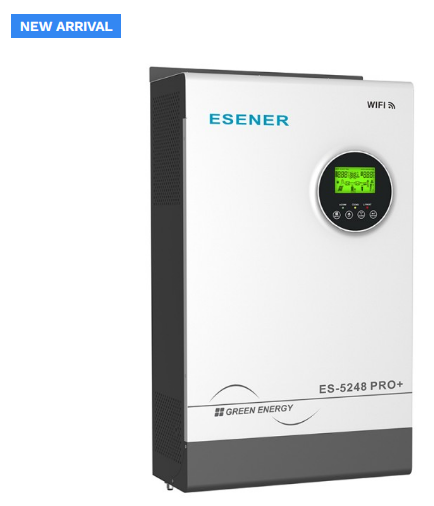

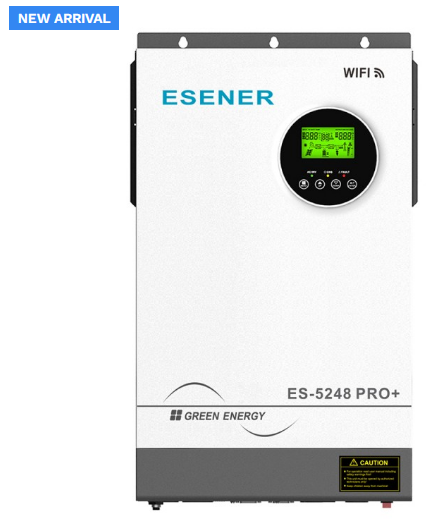

ESENER Pure Sine Wave Inverter - 48VDC / 5.2kw / 5200W - with WIFI Dongle

ES-PRO is a multi-function inverter/charger, combining the functions of an inverter, MPPT solar charger, and battery charger to offer uninterruptible power support in a portable size.
ES-PRO Series can run without a battery. The Maximum PV array open circuit voltage can reach 450V and the MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy

Features

- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide power to the load without a battery

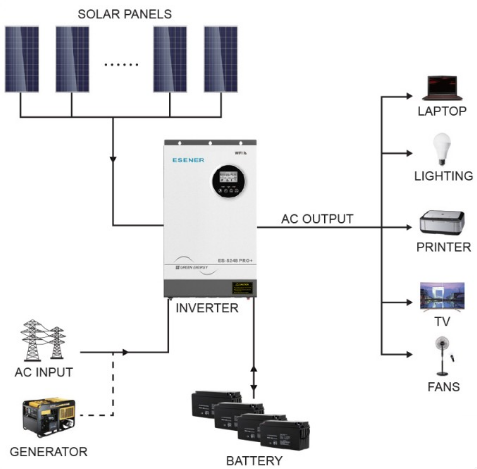

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit, and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- Parallel operation with up to 3 units

Specifications

- Nominal Battery System Voltage: 48VDC

INVERTER OUTPUT

- Rated Power: 5200VA / 5200W
- Surge Power:10400W
- Waveform: Pure sine wave
- AC Voltage Regulation (Batt. Mode): 230VAC±5%(Setting)
- Inverter Efficiency(Peak): 90%
- Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)

AC INPUT

- Voltage: 230VAC±5%
- Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
- Frequency Range: 50Hz / 60Hz(Auto sensing)

BATTERY

- Normal voltage: 48VDC
- Floating Charge Voltage: 54.8VDC
- Overcharge Protection: 60VDC

SOLAR CHARGER & AC CHARGER

- Maximum PV Array Open Circuit Voltage: 450VDC
- Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
- Maximum PV Array Power: 5000W, 6000W
- PV Array MPPT Voltage Range: 150~430 VDC
- PV Max Input Current: 27A
- Maximum Solar Charge Current: 80A, 100A
- Maximum AC Charge Current: 60A, 80A
- Maximum Charge Current: 80A, 100A

MECHANICAL SPECIFICATIONS

- Machine Dimensions (W*H*D)(mm): 309*505*147
- Package Dimensions (W*H*D)(mm): 375*655*269
- Net Weight(kg): 14
- Gross Weight(kg): 16.4

OTHER

- Humidity: 5% to 95% Relative humidity (Non-condensing)
- Operating Temperature: 0°C~50°C
- Storage Temperature: -15°C ~60°C

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation
of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC,
and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
