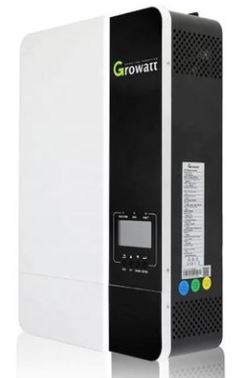

Growatt 5kw 5kva 48v Hybrid Parallel Wifi Inverter - SPF 5000 ES

5Kw Growatt SPF 5000 ES off-grid is an off-grid inverter for backup power and self-consumption application, maximum power PV input voltage up to 450VDC. This is a multifunctional off-grid solar inverter, integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications. 5Kw Growatt SPF 5000 ES off-grid is an off-grid inverter that is perfect for Off-Grid and Backup applications. It is designed to operate at a low voltage range, with high efficiency and excellent performance.

Features:
- The integrated MPPT charge controller
- It can work with a battery or without a battery
- Maximum PV input voltage up to 450VDC
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Parallel for scalability

Specifications:
Inverter Output
Rated Power: 5000VA/ 5000W
Parallel Capability: Yes, 6 units
AC Voltage Regulation (Battery Mode): 230VAC 5% at 50/60Hz
Surge Power: 10000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave Pure sine wave
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR Charger
Maximum PV Array Power: 5500W
MPPT Range at Operating Voltage 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
Maximum Efficiency: 97%
AC Charger
Charge Current: 80A
AC Input Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto-sensing)
Physical Dimension (D/W/H) in mm: 485mm/330mm/135mm
Net Weight (kgs): 12
OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: 0C - 55C
Storage Temperature: -15C - 60C

What's in the box
1 x Hybrid Inverter
1 x User Manual
1 x Wifi logger
1 x Parallel Kit
1 x Software Installation CD

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
