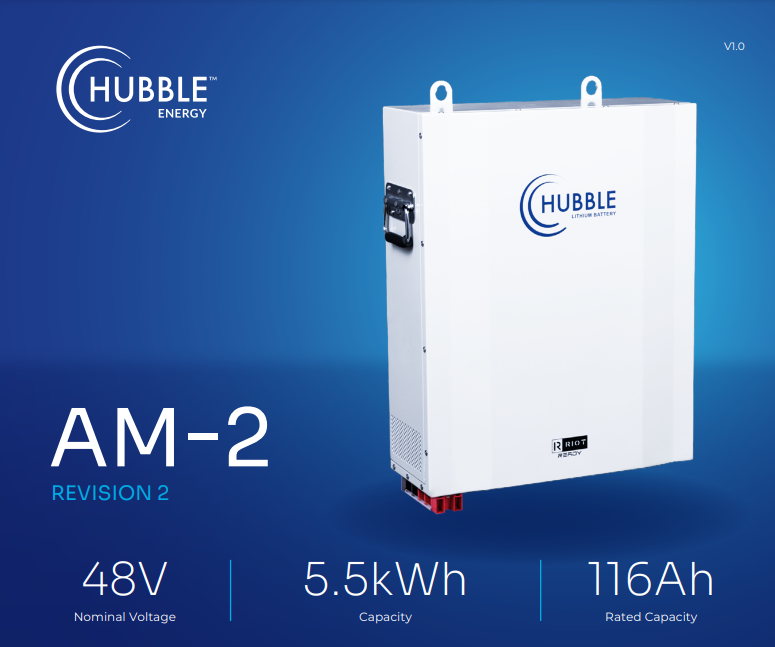

Hubble AM2 Lithium 5.5kWh 51.2V Battery

FEATURES

+ Optional remote monitoring with the Hubble
Cloudlink
+ 1C high performance lithium battery
+ Advanced BMS with current limiting function
+ Easy wall mount or shelf rack installation
+ Heavy duty side handles for easy handling
and mounting on the wall

+ High cycle and service life
+ Compatible with most inverters and chargers
+ Built in protection for over-charge, overdischarge and over-temperature
+ CAN Bus, fully integrates and communicates
with leading Inverter brands

Item Specifications

Model Hubble AM-2
Rated Capacity (5HR) 116 Ah
Nominal Voltage 48 V
Design Capacity 5.5 kWh
Equalized Charge Voltage 53.8 V
Max. Continuous Charging Current 105 A
Max. Continuous Discharging Current 105 A
C Rating 1.0 C
Depth of Discharge 100%
Weight Approx. 42 Kg
Monitoring Optional Cloudlink
Parallel Parallel connection up to 15 packs with full communications
Dimensions (WxDxH) mm 375mm x 145mm x 467mm
Ports 1x CAN-bus, 2x Battery Link Ports
Cells New Li-ion Prismatic Cells
Design Life +/- 15 Years
Cycle Life @ 1C +/- 6000 Cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
Certification CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material White bake lacquer steel case
Operating Temperature Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
