Also used in generators, security systems, and backup power solutions
Electrical
Nominal Voltage: 12.8V
Nominal Capacity: 22Ah
Rated Power: 281.6W
BMS Function: Overcharge, over-discharge, over-current, and temperature protection
Recommended Charge Voltage: 14.4-14.6V
Discharge Cut-off Voltage: 10.8V
Standard Charge Current: 10A
Max. Charge Current: 20A
Continuous Discharge Current: 20A
Peak Discharge Current: 40A @5S
Voltage Configurations: 12V
Maximum Configuration: Inverse capacity in parallel
Maximum Time Between Charges: 3 months
Mechanical
Terminal: M5
Casing Material: ABS
Environment
Working Temperature Range: Charge: 0 C~55 C, Discharge: -20 C~60 C
Humidity Range: 95% RH
Storage Temperature: 15 C~35 C
IP Protection Level: IP65
What's in the box

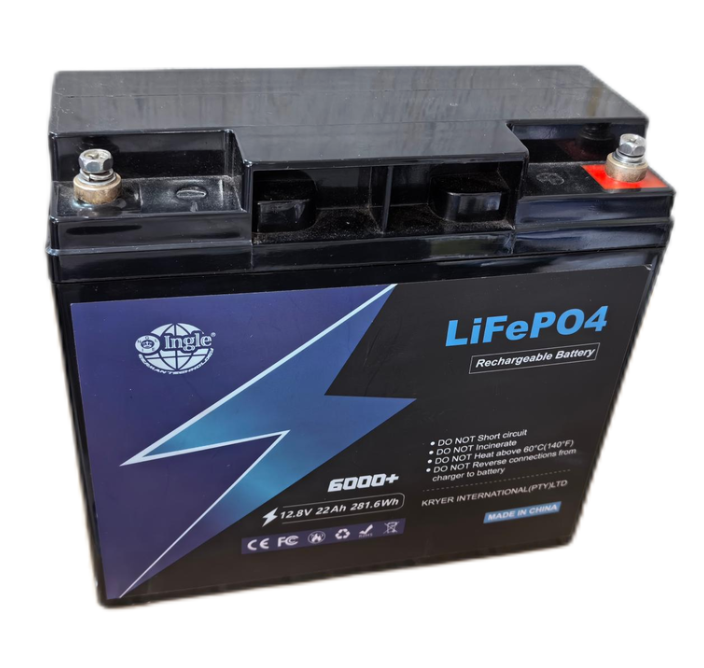

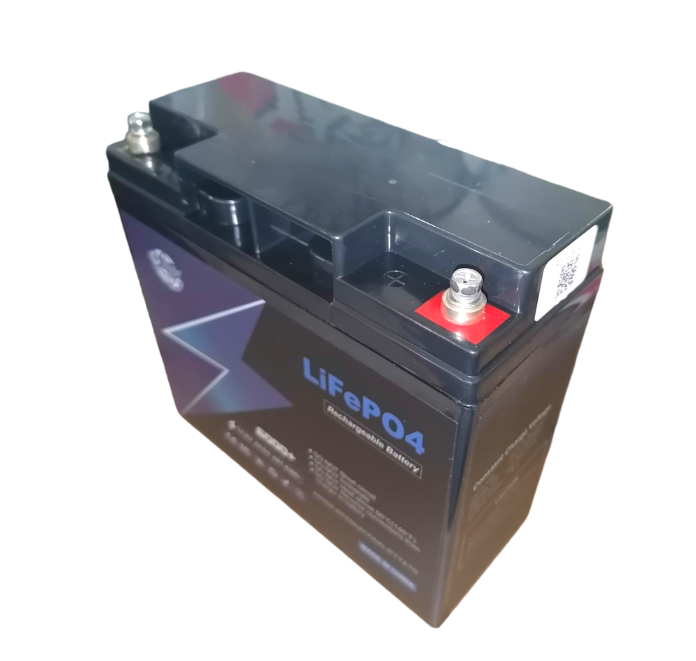

1 x 12.8V 22AH Lithium Rechargeable Battery- 281.6Wh (Ingle battery)
