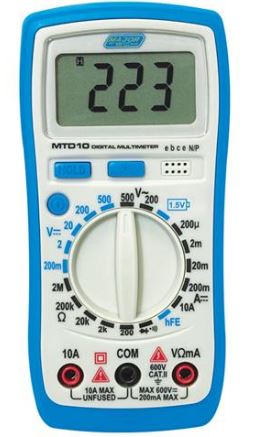

Major Tech MTD10 Digital multi-meter
Major Tech MTD10 Digital multi-meter
Couldn't load pickup availability
The MTD10 is a Compact Digital DIY Multimeter with a 2000 count digital display and is designed as an ideal meter for general purpose use by electronic technicians, alarm installers, students, hobbyist and homeowners. The MTD10 measures AC and DC voltage to 500V, resistance to 2M Ohms, DC current to 10A, plus has a diode test function and continuity buzzer. The meter also offers the added convenience of a 1.5V battery test under load, a transistor test range, backlit display, data hold and a tilt stand. The meter meets the International standard IEC 61010-1 CAT II 600V / CAT III 300V. Supplied standard with a rubber holster, test leads and a 9V battery.
Data Hold |
Yes |
---|---|
Power source |
9V Alkaline / Carbon-zine |
Over-range indication |
Yes |
Diode Test |
Yes |
Digital Display |
3 ½ Digital LCD 1999 max |
DC Voltage |
200mV – 2V – 20V – 200V – 500V |
DC Current |
200µA-2mA-20mA-200mA-10A |
Built-in buzzer |
Yes |
Continuity |
Yes |
Battery test |
1.5V |
Battery Life |
100 Hrs carbon-zine |
Back Light |
Yes |
AC Voltage |
200V-500V |
Resistance |
200Ω-2kΩ-20kΩ-200kΩ-2MΩ |
Fuse |
F 200mA/250V |
Weight |
195g |
Dimensions |
144 (h) x 71(w) x 32(d) mm |
