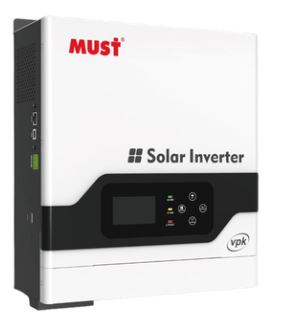

MUST 3KW 24V/80A Pure Sine Wave Hybrid MPPT Inverter

PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:
-Pure sine wave output
-Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
-Built-in PWM 50A/60A solar charge controller
-New SUB working mode(Solar-Utility-Battery working mode)
-Combining solar system, AC utility, and battery power source to supply continuous power
-Overload, short circuit and deep discharge protection
-Parallel operation with up to 3 units (Available for 4KW/5KW only)
-Cold start function
-Support USB, RS485 monitoring function
-WIFI remote monitoring (optional)
-Compatible to generator

Specifications:

Inverter Output:
-Nominal Battery System Voltage: 24VDC
-Rated Power: 3000W
-Wave Form: Pure sine Wave
-AC Voltage Regulation (Batt. Mode): (220VAC~240VAC) ±5%
-Inverter Efficiency Peak: 93%
-Transfer Time 10ms (UPS / VDE4105) 20ms (APL)

AC Input:
-Voltage: 230VAC
-Selectable Voltage range: 170~280VAC (For personal computer) / 90~280VAC(For home appliances) / 184~253VAC(VED4105)
-Frequency Range: 50Hz / 60Hz (Auto sensing)

Battery:
-Normal Voltage: 24VDC
-Floating Charge Voltage:27.4VDC
-Overcharge Protection: 30VDC

Solar Charge & AC Charger:
-Maximum PV Array Open Circuit Voltage: 80VDC
-Standby Power Consumption: 2W
-(PWM) Maximum Solar Charge Current:60A
-Maximum AC Charge Current: 20A or 30A
-Maximum ChargeCurrent:80A

What's in the box
1x 3KW 24V/60A Pure Sine Wave Hybrid Inverter - MUST
1x User Manual

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
