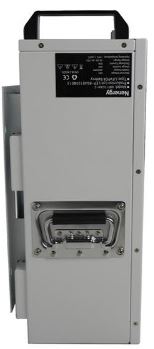

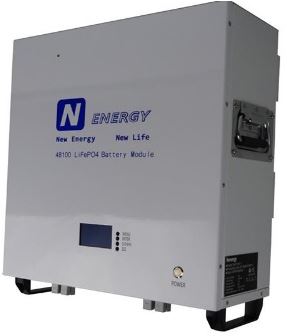

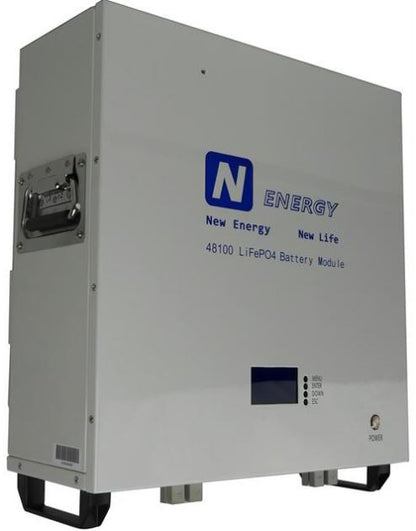

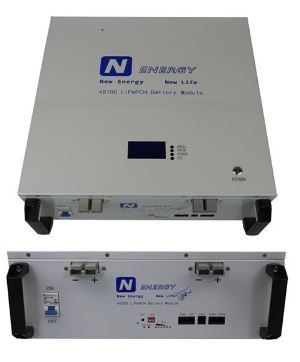

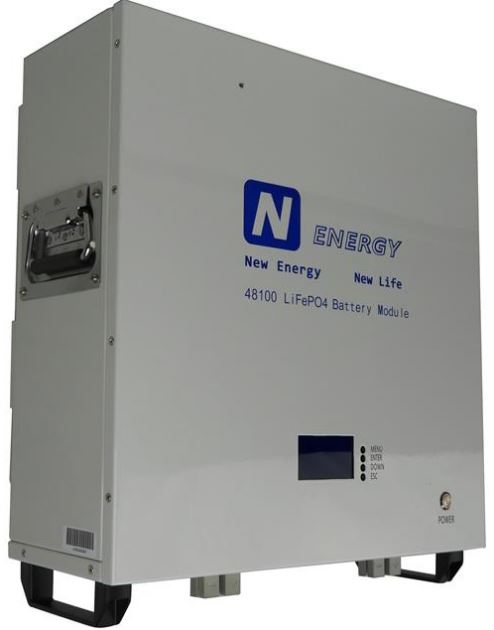

N-Energy 4.8KWH 100AH 48V WALL MOUNT LITHUIM ION BATTERY MODULE

Features of LiFePO4 battery
Longer Cycle Life. Lighter Weight. Higher Power.
Wider Temperature Range.Superior Safety.
Increased Flexibility. BMS Specification
Overcharge detection function. Over-discharge detection function.
Over-current detection function.Temperature protection.Short detection function.
Balance function.Electrical Characteristics
Nominal Voltage: 48.0V.Nominal Capacity: 100Ah.
Energy: 4800Wh.Internal Resistance: 50m.
Cycle Life: 6000cycles @1.0C 100%DOD.
Months Self Discharge: 3%.
The efficiency of Charge: 100%@0. 2C.
The efficiency of Discharge: 96~99%@0.5C.
Mechanical
Cell & Method: 32700 6Ah.
Shell material: Cylindrical cells Iron(SPCC).
Dimensions (in./mm.): 650 x 438 x 178.
Weight (lbs./kg.): Approx:55Kg.
Gravimetric specific energy: 85WH/KG.

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
