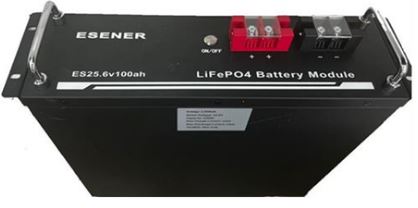

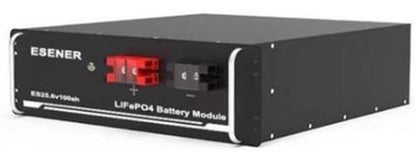

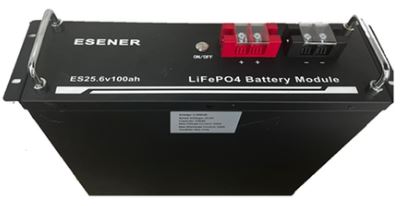

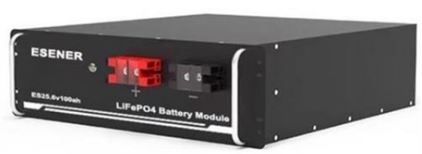

Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Regular price
R 12,790.00
Regular price
Sale price
R 12,790.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Solarix Esener 25.6V 100Ah Lifepo4 Single Battery Module- Total Usable Energy 2.56KWh , Normal Voltage: 25.6V, Rated Capacity (5HR): 100 Ah, Voltage Range 20.0V to 29.2V, Continuous Charging Current: 100A, Continuous Discharging Current: 100A, Low Self-Discharge, 19 inch Rack Mount Chassis, Heavy-Duty Side Handles For Easy Handling And Mounting , Work Perfectly Hybrid Inverters Up To 3.5KVA 24V, Colour Black, Retail Box , 1 year Limited Warranty
Product Overview
The Solarix Esener 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard 19-Inch Rack Mount Embedded designed module for easy installation and maintenance.
Features
• Esener 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Excellent High-Temperature Performance.
• 1c High-Performance Lithium Battery.
• High Energy Density And Conversion Efficiency.
• Low Self-Discharge.
• 19 Inch Rack Mount Chassis
• Heavy-Duty Side Handles For Easy Handling And Mounting To The Wall
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 20.0V to 29.2V
• Charge and Discharge Current 100A
• Bulk Voltage 27.6V-28.4V
• Float Voltage 26.4V-27.2V
• Cut-off Voltage 22.0V-22.8V
• Esener 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Excellent High-Temperature Performance.
• 1c High-Performance Lithium Battery.
• High Energy Density And Conversion Efficiency.
• Low Self-Discharge.
• 19 Inch Rack Mount Chassis
• Heavy-Duty Side Handles For Easy Handling And Mounting To The Wall
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 20.0V to 29.2V
• Charge and Discharge Current 100A
• Bulk Voltage 27.6V-28.4V
• Float Voltage 26.4V-27.2V
• Cut-off Voltage 22.0V-22.8V
Specifications
• Description Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Rated Capacity (5HR): 100Ah.
• Voltage: 25.6V.
• Total Usable Energy 2.56KWh
• Discharge Cut-off Voltage: 20.0V.
• Equalised Charge Voltage: 29.2V.
• Maximum Continuous Charging Current: 100A.
• Maximum Continuous Discharging Current: 100A.
• C. Rating: 1.0C.
• Display: None.
• Parallel/Series: Parallel and series connection up to “2S2P”.
• Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
• Cells: New Li-Ion Prismatic Cells.
• Design Life: -/+ 10 Years.
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD.
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
• Dimensions (WxDxH): 484mm x 420mm x 133mm.
• Weight: Approx. 26kg.
• Description Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Rated Capacity (5HR): 100Ah.
• Voltage: 25.6V.
• Total Usable Energy 2.56KWh
• Discharge Cut-off Voltage: 20.0V.
• Equalised Charge Voltage: 29.2V.
• Maximum Continuous Charging Current: 100A.
• Maximum Continuous Discharging Current: 100A.
• C. Rating: 1.0C.
• Display: None.
• Parallel/Series: Parallel and series connection up to “2S2P”.
• Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
• Cells: New Li-Ion Prismatic Cells.
• Design Life: -/+ 10 Years.
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD.
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
• Dimensions (WxDxH): 484mm x 420mm x 133mm.
• Weight: Approx. 26kg.
Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
