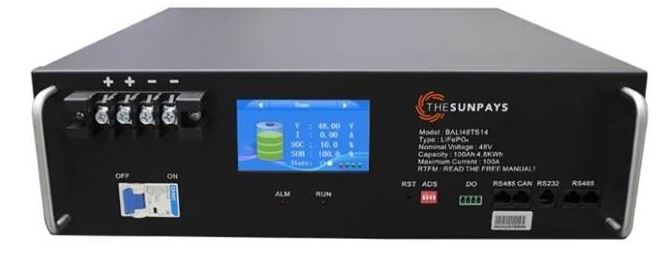

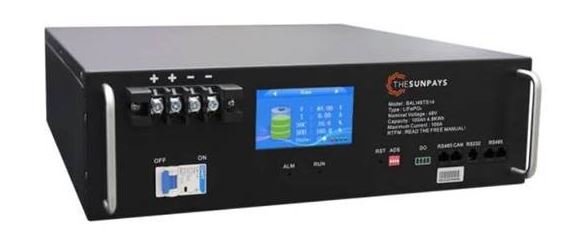

The Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module- is perfect for medium to large residential installation with a Lithium-ion battery solution with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Invertors Up To 7KVA 48V. Standard 19-Inch Rack Mount Embedded designed module for installation and maintenance. Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication.
Please Note This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. Care should be given for cable sizes and copper busbars should be used if large currents is drawn
Highlights
∙ Solarix SunPays 48V 100Ah Lithium Iron Phosphate (Lifepo4) Single Battery Module
∙ Intelligent Battery Management System with RS485 and CAN Bus BMS communication
∙ Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V
∙ Battery Cycle Life ≥ 3500 @ 80% DOD, 25°C 1C (100A)
∙ Normal Voltage 48V
∙ Typical Rated Capacity: 105Ah
∙ Total Usable Energy 4.8KWh
∙ Maximum Continuous Charge Current 100A (controlled by BMS if comm. used)
∙ Maximum Continuous Discharge Current 100A
∙ Easy To Install 19 Inch Rack Mount Chassis
∙ Can also be connected in Parallel with up to 15 battery packs to a total of 72kWh
BMS communication compatible with Following Inverters
Sacolar Inverters , Growatt Inverters, SunPays 5.5kW Inverters, SunPays 4kW / 5kW Inverters (Via TSP Solar Bot)
Sunsynk Inverters, Deye Inverters, Victron Inverters, SMA Inverters, Solis Inverters, Goodwe Inverters, Luxpower Inverters
What's in the box:
- 4.8kWh battery
- Two brackets
- Bolts and nuts to mount the battery in a battery cabinet
- Communication cable for RS232 (RJ11 to USB)
- No network cable is supplied for parallel connectivity
Note:
It is not recommended to parallel an older battery with a new battery. The internal resistances of the batteries and the firmware may differ.
Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
