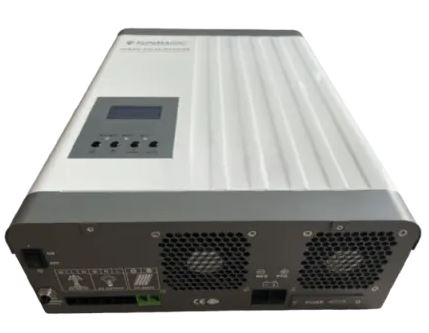

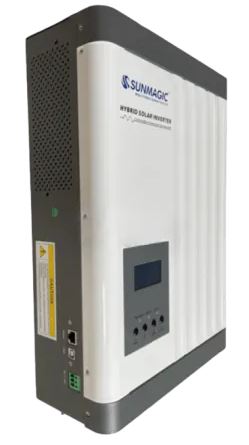

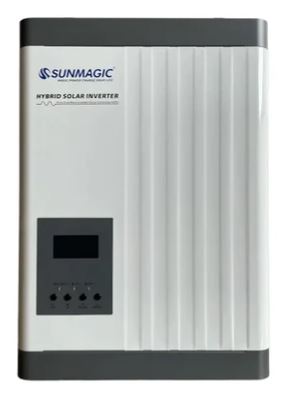

Sunmagic 3.5KVA 3000w PWM 24V Solar Hybrid Inverter

-This is a multi-function inverter/charger, combining the functions of an inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size.

-Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications

Features;
-Pure sine wave output
-Adjustable parameter
-Lower failure rates
-Auto restart while AC is recovering
-Output short circuit protection
-Compatible with the main market product

Specifications;
Inverter Mode;
-Rated power; 3500VA/ 3000W
-DC Input; 24DC, 145A
-AC Output; 230VAC, 50Hz, 13A,1

AC Charger Mode;
-AC Input; 230VAC, 50Hz, 15A,1
-DC Output; 27VDC, 10-60A
-AC Output; 230VAC, 50Hz, 13A,1

Solar Charge Mode;
-Rated current; 60A
-Inverter weight; 15700g
-System Voltage; 24VDC
-Min. solar voltage; 30VDC
-Best Vmp range; 30-35VDC
-Max. solar voltage; [VOC]; 105VDC
-Package dimensions; l=53.5cm x h=20cm x w=40cm

What's In The Box
1 X 3.5KVA-24V PWM 3000W Solar Inverter

with mains voltage and can charge batteries.

-Auto restart while AC is recovering
-Overload and short circuit protection
-Smart battery charger design for optimised battery performance
-Cold start function
-RoHS compliant

What's in the box
1 x Sunmagic 3.5KVA 3000w PWM 24V Solar Hybrid Inverter
1 x Communication cable
1 x User Manual

Size : 535 x 380 x 195 mm / 15kg

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
